Bay and Bow Windows

30 or 45 Degree Bays and 3 to 5 Lite Bow Windows

Whether you’re looking to create window seats or add dimension to a room, we have the bay and bow styles you need. You can chose from 3- to 5-lite styles, or select double hung or casement windows to flank a middle picture window. Flankers open to provide ventilation.

Bay and bow windows arrive completely assembled and are simple to install and customize.

Ellison Bay/Bow Window Brochure

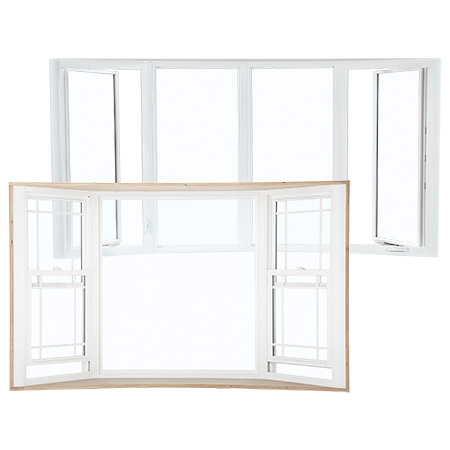

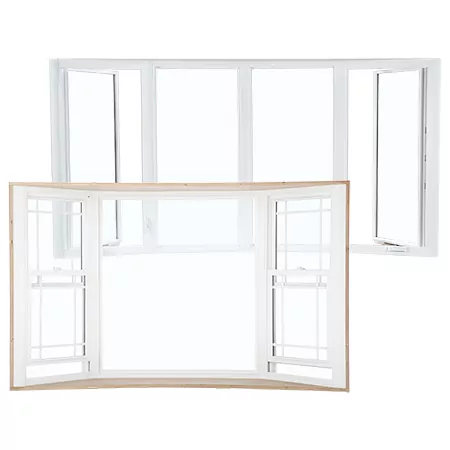

Bay Bow Product Photo
Product Close-Up View
Bay and Bow Windows
Feature Sheet

Standard Features

  • Bay windows may be 30- or 45-degrees
  • Bow windows are 15-degrees
  • All units come completely assembled and ready for installation
  • Cable system is mandatory
  • Double hung flankers are considered standard
  • Screens are included on all operable flankers*
  • All units include insulated glass
  • 1″ birch head and seat board is standard
  • Available colors are white and almond

* Screens are not meant to restrain a child from falling through an open window.

Vinyl Color Options


White

Almond

Laminated Color Options


Light Oak

Cherry

Dark Oak

Painted Color Options


Brick Red

Bronze

Clay

Dark Chocolate

Gray

Hunter Green

Tan

Terratone

Note: Device/Monitor screen settings may affect color shown. Please refer to actual window sample when selecting colors. Laminates and exterior painted options available on select products, if they are not shown above they are not available on this product. Interior and exterior laminates available on white window only. Only use mild, water based household cleaner on painted product and rinse immediately with water. See full cleaning instructions for details. Grid offering limited to 5/8” contoured or SDL on exterior painted windows.

Grid Types

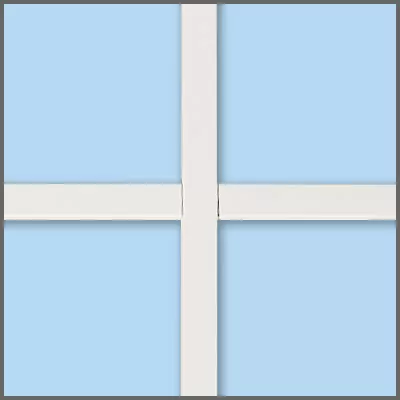

5/8-Inch Flat Grid

3/4-Inch Flat Grid

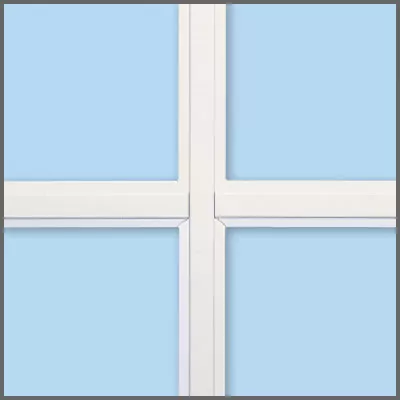

5/8-Inch Contoured Grid

1-Inch Contoured Grid

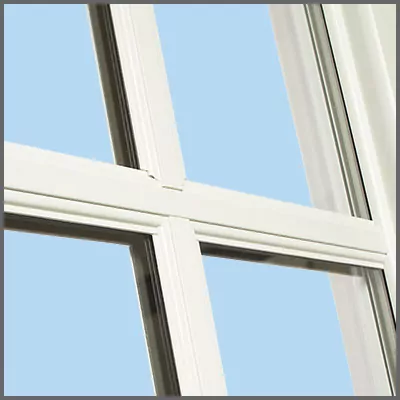

1-1/8-Inch Simulated Divided Lite (SDL) Grid

Grid Patterns

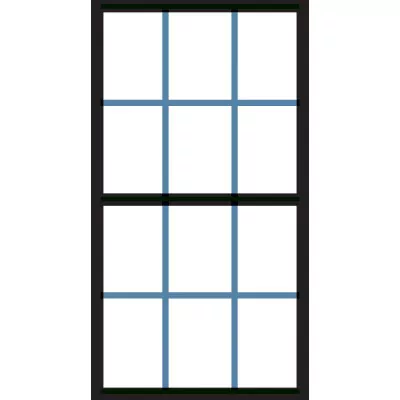

Colonial

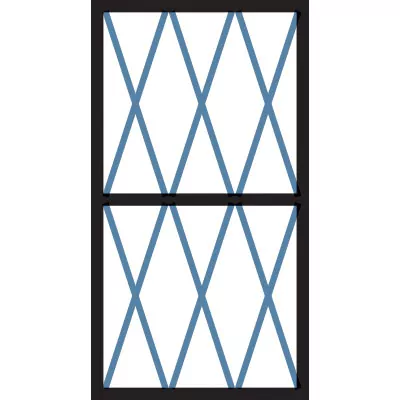

Diamond

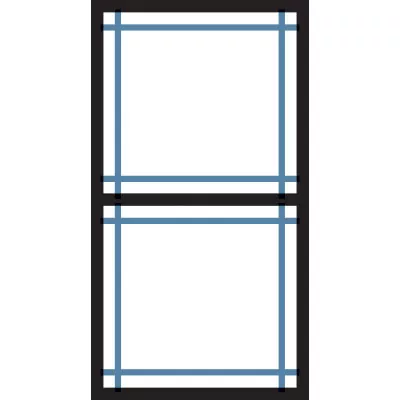

Prairie

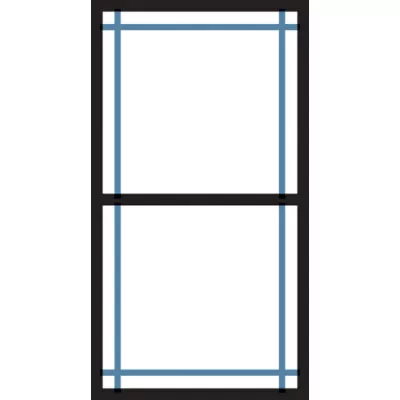

Perimeter Prairie

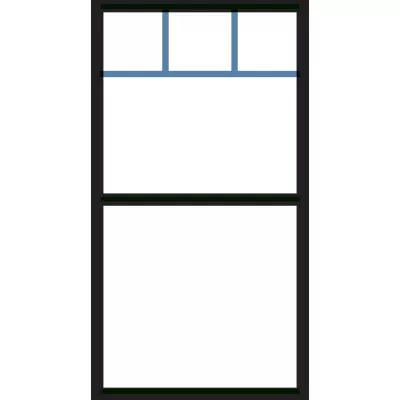

Valance

Glass Options

  • Low-E Glass
  • Low-E Glass and argon gas for additional efficiency
  • Ultra Low-E Glass and argon gas
  • Obscure, tempered or double-strength glass
  • Decorative beveled and leaded glass

Decorative Glass Options

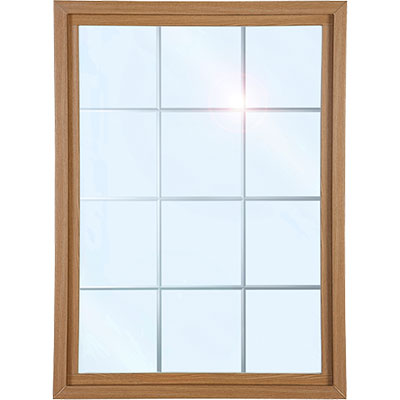

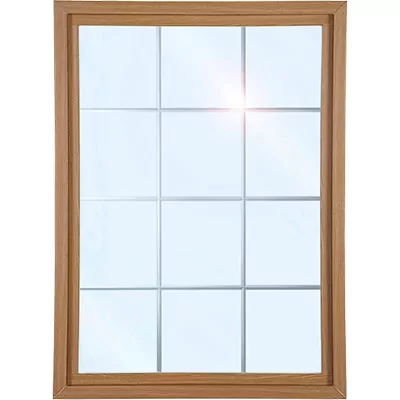

Beveled Colonial Grid

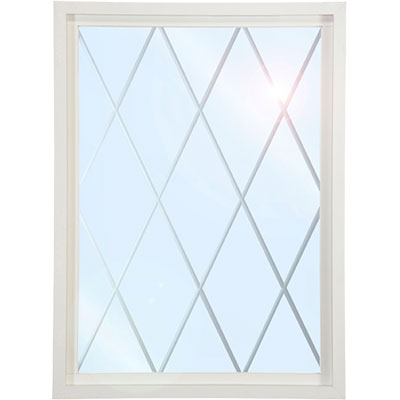

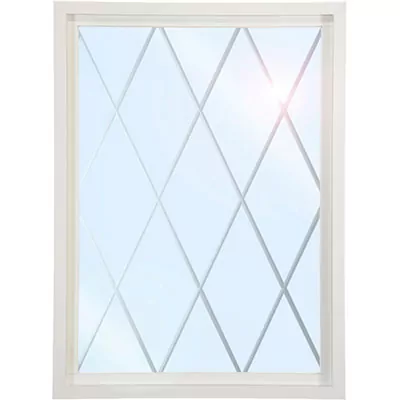

Beveled Diamond

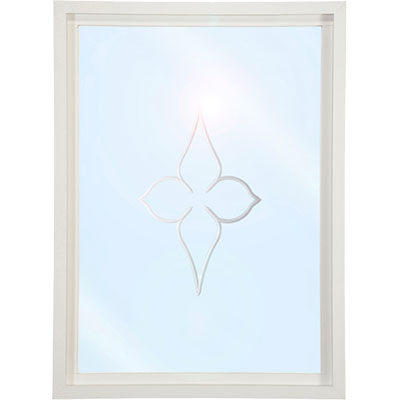

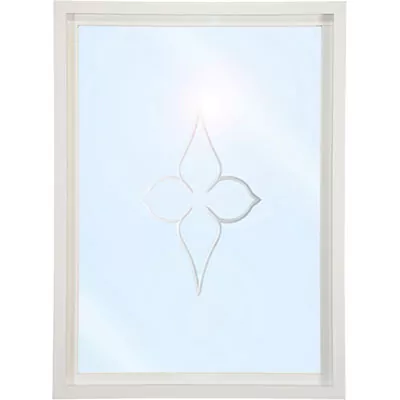

Beveled Florentine

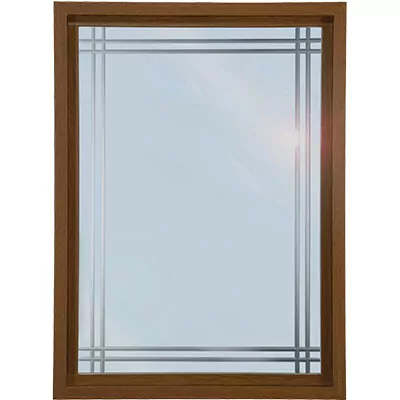

Beveled Prairie

Leaded Glass / Star Bevel

Note: Leaded/Star Bevel glass option available on picture windows only and pattern adjusts based on actual window size. Star Bevel background color added for display clarity.

Additional Options

  • Charcoal aluminum half screen
  • 3 interior Wood Laminates (available with Series 1800 only)
  • Bronze exterior laminate (available on Series 1600 only)
  • 8 painted exterior colors (white interior only, available with Series 1800 and 1300 only)
  • Custom sizes available
