Series 1600 Windows

Double Hung, 2 and 3-Lite Sliders and Picture Windows

At Ellison, we’re all about top-of-the-line materials and quality craftsmanship, and our Series 1600 windows are a perfect example. With standard features including elegant rounded sashes and Low-E Glass with Argon Gas, Series 1600 windows are guaranteed to enhance your home while protecting it from cold winter air, hot summer days and high energy costs.

Ellison All-Inclusive Replacement Brochure
Ellison Series 1600 Product Photo
Product Close-Up View

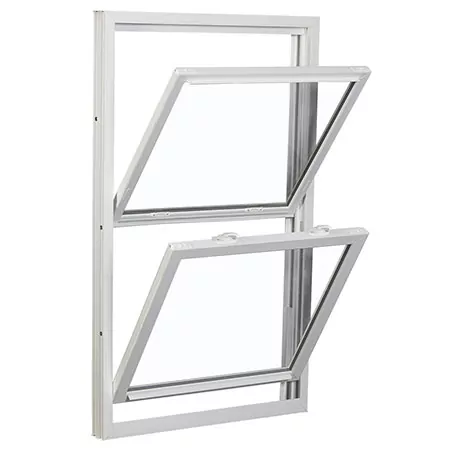

Series 1600 Double Hung Window
Feature Sheet
Product Close-Up View

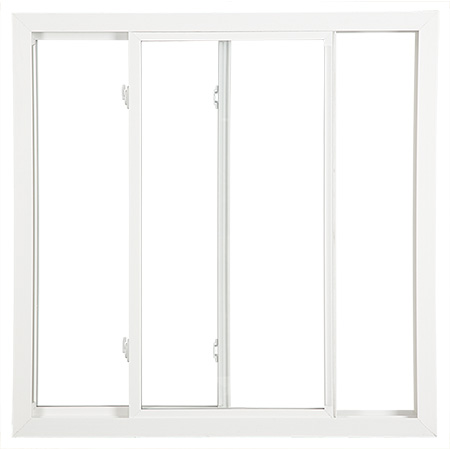

Series 1600 Slider Window
Feature Sheet

Standard Features

  • Low-E Glass with insulating argon gas provides additional efficiency
  • Beveled mainframe offers a true brick-mould appearance, which adds class and style
  • Aluminum-reinforced, multi-cavity construction provides additional thermal performance and structural integrity
  • Warm-edge spacer system
  • Fusion-welded sashes and frame add strength, boost thermal performance
  • Push-button night latches allow sash to be positioned for comfortable ventilation
  • Low profile deluxe cam lock
  • Constant force coil balance permits easy sash movement
  • Sloped sill reduces air infiltration and allows for easy water run-off
  • Rounded sashes create additional beauty for the interior of your home
  • Interlocking sashes keep out drafts
  • Rubber bulb seal helps block outside air
  • Heavy-duty, push button night latches provide optimum ventilation
  • Half screen with strong extruded aluminum frame*
  • Dual-fin weather stripping further reduces air infiltration
  • Integrated, slim line lift rail allows you to easily operate sash
  • DP Rating R35 (window size tested 36″ X 74″) (DP50 option available)
  • Transferable, Limited Lifetime Warranty
  • 25-Year Glass Breakage Warranty standard

Series 1600 Slider Window Specific Features:

  • Integrated glide channel for easy sash opening and closing
  • Tandem rollers ride easily along friction free glide channel
  • Available in 2-lite and 3-lite configurations
  • 3SL available in 1/4-1/2-1/4 or 1/3-1/3-1/3 configurations
  • XX 2-lite configuration (both sashes operate)

* Screens are not meant to restrain a child from falling through an open window.

Vinyl Color Options


White

Almond

Laminated Color Options


Bronze Exterior

Note: Device/Monitor screen settings may affect color shown. Please refer to actual window sample when selecting colors. Laminates and exterior painted options available on select products, if they are not shown above they are not available on this product. Interior and exterior laminates available on white window only. Only use mild, water based household cleaner on painted product and rinse immediately with water. See full cleaning instructions for details. Grid offering limited to 5/8” contoured or SDL on exterior painted windows.

Grid Types


5/8-Inch Flat Grid

3/4-Inch Flat Grid

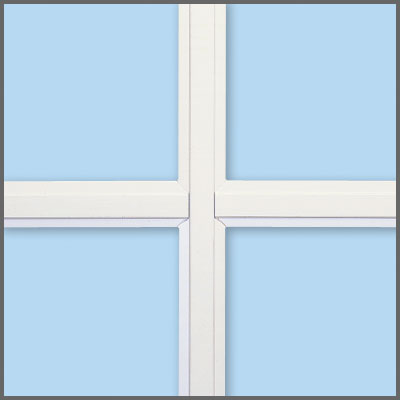

5/8-Inch Contoured Grid

1-Inch Contoured Grid

1-1/8-Inch Simulated Divided Lite (SDL) Grid

Grid Patterns


Colonial

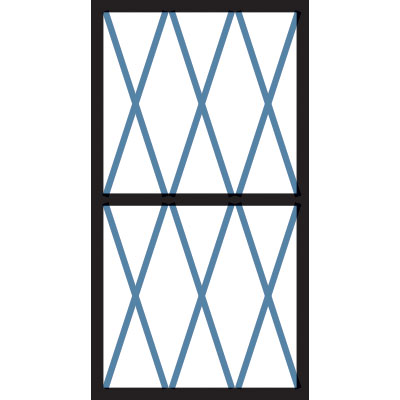

Diamond

Prairie

Perimeter Prairie

Valance

Glass Options

  • Low-E Glass
  • Ultra Low-E Glass with argon gas
  • Obscure, tempered or double-strength glass

Additional Options

  • Window Opening Control Device (WOCD) to prevent falling from a window (factory applied)
  • Factory mulling of twins, triples and architectural shapes
  • Charcoal aluminum mesh screen
  • Clear View Screen Mesh
  • Heavy Duty Screen Mesh
  • Full Screen (Double Hung only)
  • DP-50 Wind Zone Rating
  • Lifetime Glass Breakage Warranty

Series 1600 Windows

Ellison’s 1600 Series windows are the ideal choice for customers who want exceptional performance features and a full range of deluxe enhancement options.

Manufacturing Story

Our windows and sliding doors are recognized for their high-quality craftsmanship, innovative engineering and close attention to detail. Learn more about the process used to make them.

The Ellison Warranty

Every Ellison window and patio door is backed by a limited lifetime warranty on vinyl, glass and all working parts. Each product is individually registered with a product identification number, making ordering replacement parts throughout the warranty period easy and efficient.
