Series 332 Sliding Patio Doors

2-Lite, 3-Lite and 4-Lite Sliding Patio Doors

With a built-in 4-9/16″ jamb, DP50 rating, multi-point lock and heavy-duty screen standard, the 332 is in a class by itself. Sizes range in width from 5′ to 12′ and heights to 8′ on some models. With custom sizing available, just about any opening can be filled.

Ellison Patio Doors Brochure

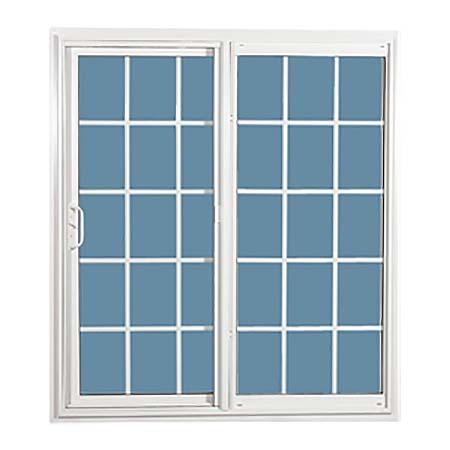

Ellison Series 332 Product Photo
Product Close-Up View
Series 332 Sliding Patio Door
Feature Sheet

Standard Features

  • DP50 rating great for coastal applications (on 5068, 6068 and 8068 doors)
  • 7/8″ insulated warm-edge sealant system with tempered glass for reduced condensation and energy efficiency
  • All-welded frame and panel pre-assembled for easy installation
  • Reversible panel design allows for moving panel to be located on left or right side (6′ 8″ height only). (Custom sizes not reversible)
  • Aluminum track for moving panel
  • Screen comes standard
  • 4-9/16″ jamb depth
  • Multi-point lock
  • 8′ height available
  • Interlocking panel virtually eliminates air infiltration
  • Custom sizes available
  • Limited Lifetime Warranty

Vinyl Color Options




Laminated Color Options

Light Oak


Dark Oak

Bronze Exterior

Black Exterior

Painted Color Options


Brick Red



Dark Chocolate


Hunter Green



Note: Device/Monitor screen settings may affect color shown. Please refer to actual window sample when selecting colors. Laminates and exterior painted options available on select products, if they are not shown above they are not available on this product. Interior and exterior laminates available on white window only. Only use mild, water based household cleaner on painted product and rinse immediately with water. See full cleaning instructions for details. Grid offering limited to 5/8” contoured or SDL on exterior painted windows.

Grid Types

5/8-Inch Flat Grid

3/4-Inch Flat Grid

5/8-Inch Contoured Grid

1-Inch Contoured Grid

1-1/8-Inch Simulated Divided Lite (SDL) Grid

Glass Options

  • Low-E Glass
  • Low-E Glass and argon gas for additional efficiency
  • Ultra Low-E Glass and argon gas
  • Blinds Between the Glass—Available on 5068 (White Only) and 6068 patio doors in white, interior and exterior finishes

Additional Options

  • Foot bolt lock
  • Brick Mold J-channel
  • Oil rubbed bronze, brushed nickel or brass handle
  • Multi-point keyed lock
  • Available in 5′, 6′, 6’4″, 8′, 9′, and 12′ configurations
  • Pet Resistant Screen Mesh
  • Custom sizes available

Special Features and Options Spotlight

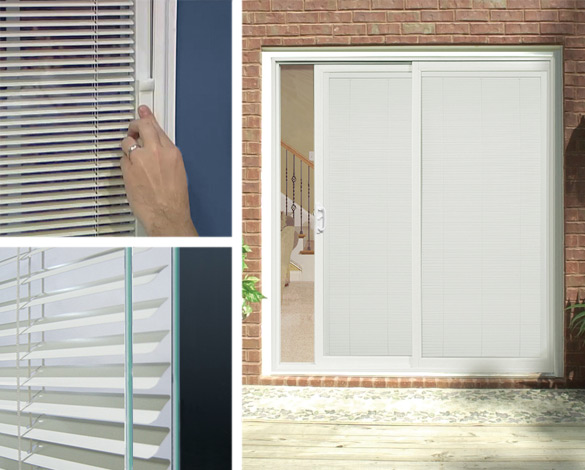

Patio Door Blinds Between the Glass

Blinds Between the Glass

Available in 6068 with white, interior and exterior laminates. Blinds, operators and glass panels available in white only.

  • Easy to raise, lower and tilt blinds
  • Sealed between the glass, the blinds control light and privacy
  • Blinds between glass never need dusting and are safe for pets and children
