Series 130 Windows

Single Hung, 2 and 3 Lite Sliders and Picture Windows

Our Series 130 single hung windows for New Construction or Replacement offer an exceptional value with outstanding strength, energy efficiency and lasting beauty. Available in single hung, sliders, picture windows and architectural shapes.

Ellison Series 130 Brochure
Series 130 Windows Product Photo
Product Close-Up View

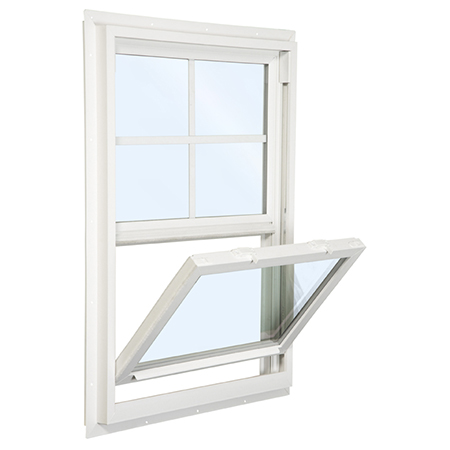

Series 130 Single Hung Window
Feature Sheet
Product Close-Up View

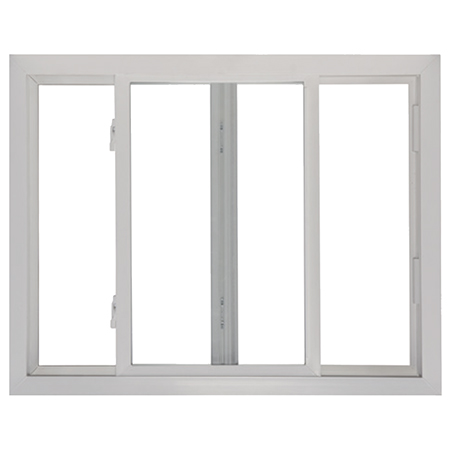

Series 130 Slider Window
Feature Sheet

Standard Features

  • Select from 4 frame types:
    – Box Frame (no nail fin & no front flange)
    – J-Channel (nail fin & front flange)
    – Nail Fin Only (no J-Channel)
    – Front Flange Only
  • Bottom sash tilts in for easy cleaning from inside
  • Aluminum half screen comes standard*
  • Block and Tackle balance system for easy sash movement
  • Warm-edge spacer system provides energy saving thermal performance
  • DP 50 rating (window size tested 53″ x 77″)
  • Aluminum reinforcement standard in lock & meeting rails and sash stiles
  • Dual sweep locks (standard at 27-1/4″ and above) help provide a weather-tight seal and added security
  • Dual weather-stripping helps block air and water infiltration, keeping harsh elements outside and energy-saving comfort inside
  • Step sill design combines water run-off and aesthetic features of a sloped sill with the structural strength and internal drainage system of a pocket sill
  • Jamb depth: 3″
  • Limited Lifetime Warranty

Series 130 Slider Window Specific Features:

  • DP 50 rating (window size tested 74″ x 50″ for 2-Lite and 108″ x 50″ for 3-Lite)
  • DP 40 rating (window size tested 74″ x 63″ 2-Lite)
  • DP 30 rating (window size tested 108″ x 63″ 3-Lite)
  • Step sill design combines water run-off and aesthetic features of a sloped sill with the structural strength and internal drainage system of a pocket sill
  • Tandom rollers ride easily along friction free channel
  • Available in 2-lite and 3-lite configurations

* Screens are not meant to restrain a child from falling through an open window.

Vinyl Color Options


White

Almond

Clay

Laminated Color Options


Bronze Exterior

Black Exterior

Painted Color Options


Brick Red

Black

Bronze

Clay

Dark Chocolate

Gray

Hunter Green

Tan

Terratone

Note: Device/Monitor screen settings may affect color shown. Please refer to actual window sample when selecting colors. Laminates and exterior painted options available on select products, if they are not shown above they are not available on this product. Interior and exterior laminates available on white window only. Only use mild, water based household cleaner on painted product and rinse immediately with water. See full cleaning instructions for details. Grid offering limited to 5/8” contoured or SDL on exterior painted windows.

Grid Types


5/8-Inch Flat Grid

3/4-Inch Flat Grid

5/8-Inch Contoured Grid

1-Inch Contoured Grid

1-1/8-Inch Simulated Divided Lite (SDL) Grid

Grid Patterns


Colonial

Diamond

Prairie

Perimeter Prairie

Glass Options

  • Low-E Glass
  • Low-E Glass and argon gas for additional efficiency
  • Ultra Low-E Glass and argon gas
  • Non-reflective Low-E Glass and Non-reflective Low-E Glass with argon gas
  • Double strength and obscure glass

Additional Options

  • Oriel style (Single Hung Only)
  • Window Opening Control Device (WOCD) to prevent falling from a window (factory applied) (Single Hung Only)
  • Factory mulling and factory prepared mulling
  • Fiberglass half screen
  • Charcoal aluminum half screen
  • Commodity sizing available
  • Custom sizes available

Special Features and Options Spotlight

Series 130 Frame Options

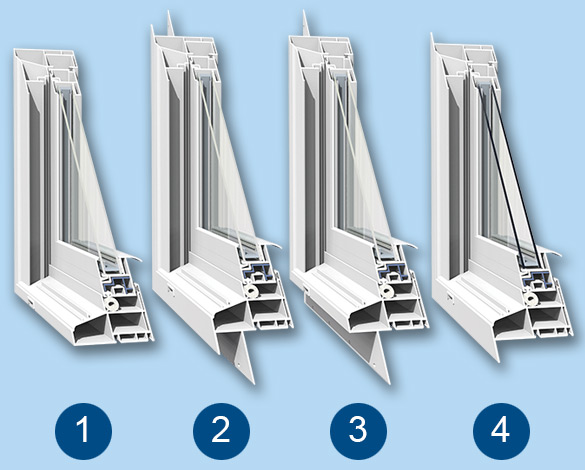

Series 130 Frame Types

The Lansing Series 130 window line comes in 4 different frames types to meet various installation needs:

  1. Box Frame (no nail fin & no front flange)
  2. J-Channel (nail fin & front flange)
  3. Nail Fin Only (no J-Channel)
  4. Front Flange Only

Manufacturing Story

Our windows and sliding doors are recognized for their high-quality craftsmanship, innovative engineering and close attention to detail. Learn more about the process used to make them.

New Construction Windows

Ellison’s new construction product video provides a detailed look at all of our new construction window offerings.

The Ellison Warranty

Every Ellison window and patio door is backed by a limited lifetime warranty on vinyl, glass and all working parts. Each product is individually registered with a product identification number, making ordering replacement parts throughout the warranty period easy and efficient.

View Warranty & Support Details

Ellison Product Care

Ellison windows and doors are designed for easy care and maintenance. Click the button below to download Ellison’s window and door care and maintenance guide

Download Guide

Energy Savings

With multiple glass options to increase energy efficiency, there is a glass package to fit any climate need and budget. Visit the Glass section of our site to learn more about available options and energy efficiency.
